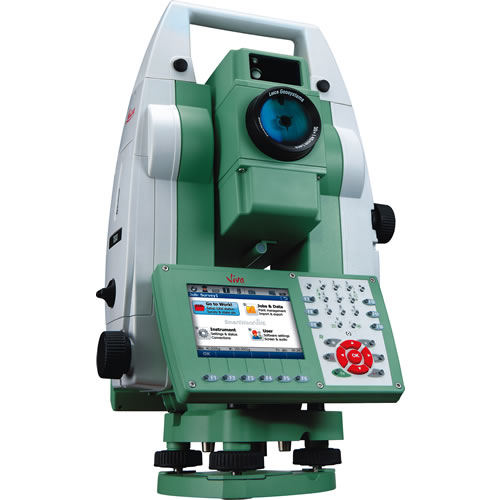

Leica Viva TS11 Imaging Total Station

Details:

An Advanced Manual Total Station
Leica Viva TS11, is the most advanced manual total station with the inclusion of advanced imaging functionality and the Leica SmartWorx Viva easy-to-use onboard software. Leica Viva TS11 raises productivity to the next level with imaging and Leica SmartWorx Viva. The unique capture-sketch-link functionality enables high resolution total station images to be captured, enhanced with sketching and then linked to any point of interest. Costly revisits can be avoided to significantly improve productivity. Every vision on every scale becomes reality with ease.

Best-in-class Imaging
Optimize your productivity with exact photo documentation of site conditions. With live streaming of the total station view, you always know what the total station sees. Measure all points without returning to the total station.

• Image Notes � Capture an image, screenshot or template, sketch on it and link it to any object in the database
• Image Assisted Surveying � Simply tap on the display and the total station will turn and measure the desired target

The Viva TPS�TS11 I Imaging Total Stations have been designed to optimally include imaging functionality for Image Assisted Surveying and Documentation. Through high quality optics, images from 2 m to infinity are transferred as sharp images to a high resolution 5 Mpixel CMOS camera. A dedicated image processing board precisely calculates the exact exposure time and white balance settings for capturing optimal camera images of the total station live view. In order to support� 20 Hz live streaming, new high-speed slip rings were designed and a state-of-the-art multimedia image processing unit was integrated to instantly transfer images from the telescope to the total stations high resolution VGA display.

Key components for the imaging functionality of the�TS11 I are:

• High quality optics (no distortions, fixed focus)
• High resolution sensor (5 Mpx CMOS image sensor)
• High performance image processing board
• High speed slip rings
• High performance processor (Freescale i.MX31, 533 MHz multimedia processor with integrated image processing unit)
• High resolution display (full VGA display)

Best-in-class Electronic Distance Measurement (EDM)
With PinPoint EDM, Viva TPS delivers the optimal balance of range, accuracy, reliability, beam visibility, laser dot size and measurement time.

• 1 mm + 1.5 ppm to prism
• 2 mm + 2 ppm to any surface
• 1000 m range without a prism

Leica Viva GNSS Add-on
Add full GNSS functionality to your Viva TS11 whenever you want and combine TPS and GNSS in the most efficient way.

• Use SmartStation for TPS setup without the need of control points, traverses and resections

Package Includes:
780827� 1��� TS11 I 5″ (1.5 mgon) R1000 Total Station with:
��������������������� 5MP Wide Angle Camera
��������������������� Reflectorless R1000 EDM
��������������������� Electronic Guide Light EGL
��������������������� 1GB Internal Flash Memory
��������������������� Laser Plummet
��������������������� 1 Keyboard with Full VGA Colour Touch Screen
��������������������� Bluetooth / RS232 / USB / SD Card Interface
��������������������� SmartWorx Viva Software + DVD
��������������������� User Manual and Container
781305��� 1� SmartWorx Viva TS Licence Key
781346��� 1� Viva TS Imaging License
667304��� 1� GDF121 Tribrach without Plummet
734700��� 1� GEV189 Cable TPS/DNA – USB
733271��� 1� GKL221 Charging Station
733323��� 2� GDI221 Charging Adaptor for Li-Ion Battery
733270��� 2� GEB221 Battery, Internal, 4.4Ah, Li-Ion
767856��� 1� MSD1000 Industrial Grade SD Memory Card 1GB
6004944� 1� 1 yr Viva TPS TS11 Basic Customer Care Package
782277��� 1� Active Assist for Leica Viva TS11
